Description

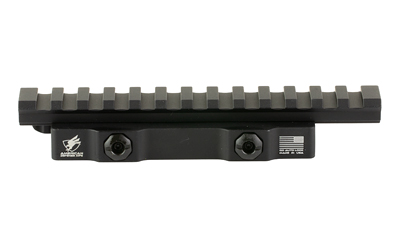

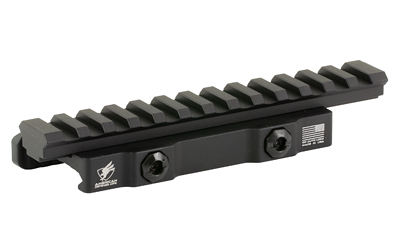

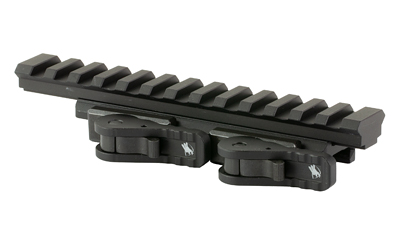

American Defense Mfg. AD-1700-XLR-STD is a quick-detach riser mount built for an extended-length Picatinny rail. It raises the optic 0.60 in above the mounting surface, with a 5.5 in overall length. The design includes a forward cantilever to help place the optic over the handguard for helmet-mounted night vision setups.
Key details
- 0.60 in rise above the mounting surface
- Overall length of 5.5 in
- Forward cantilever for optics placement over the handguard
- Quick-detach riser for extended-length Picatinny rail use
- Designed for use with EOTECH XPS/EXPS holographic sights and magnifier combinations
Centerline height
- 2 in centerline height with 512/XPS models
- 2.33 in centerline height with EXPS model EOTECH sights
| Mount Type | Quick-Detach Riser Mount |
|---|---|
| Riser Height | 0.60 in |
| Overall Length | 5.5 in |
| Centerline Height | 2 in (512/XPS), 2.33 in (EXPS) |
| Finish | Anodized Black |
