Description

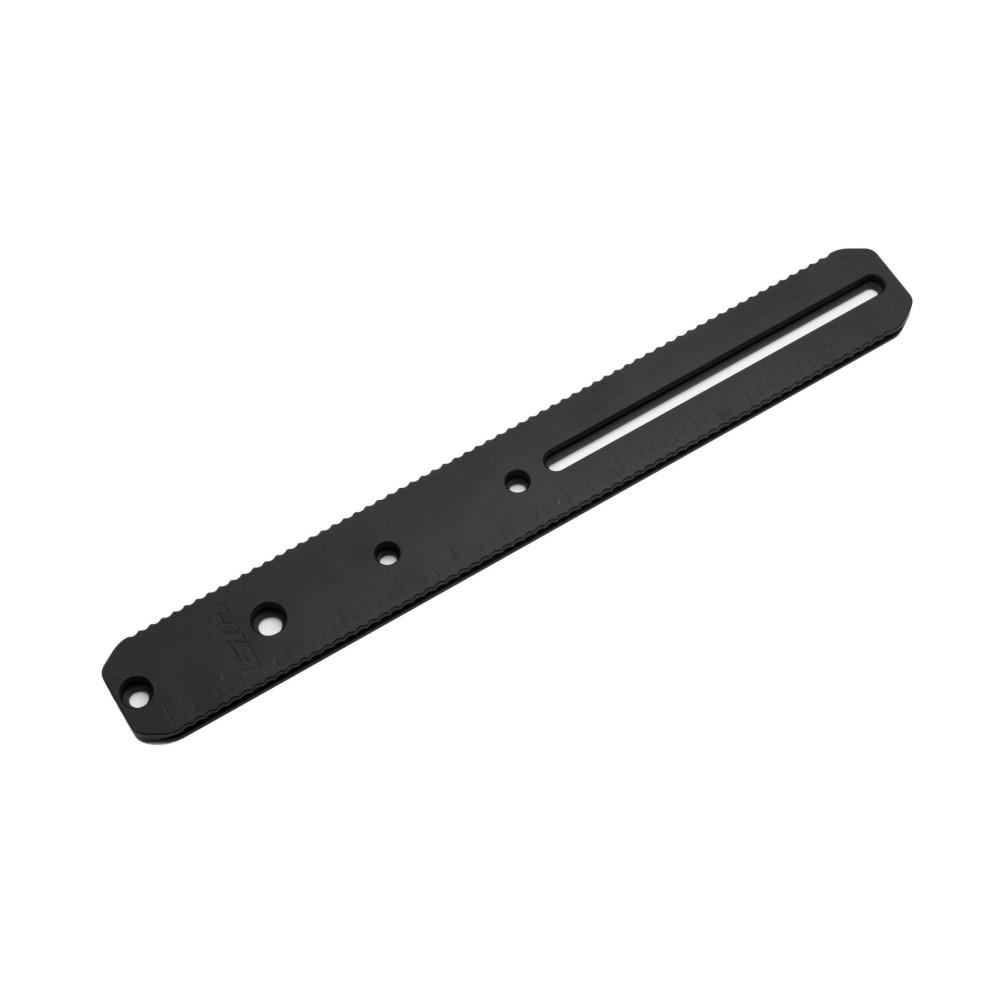

Area 419 ArcALOCK is a 12″ universal dovetail rail designed for mounting accessories along a rifle forend. It is built from 6061-T6 aluminum and finished with Type 3 hard coat anodizing for durability. The rail uses serrated sides to mechanically lock in place with Area 419 clamp hardware, which is required for secure retention.
Rail features
- 12″ rail length provides attachment coverage along the forend.
- Serrated rail sides interface with the proprietary clamp design to prevent movement.
- Backwards compatible with standard Arca accessories, but will not lock without the clamp.
- Made to the RRS 1.5″ dovetail standard for lever clamp compatibility.
- No sharp edges, with radiused corners and chamfered edges.
Specifications
| Material | 6061-T6 Aluminum |
|---|---|
| Finish | Type 3 Hard Coat anodized |
| Length | 12 in |
| Weight | 4.1 oz |
| Dovetail Standard | RRS 1.5" Dovetail Standard |
Installation notes
The rail includes an extra Remington 700-style action screw of extended length for the front action screw attachment point. Tee nuts and hardware are included, and trimming may be required depending on the current rifle configuration.
