Description

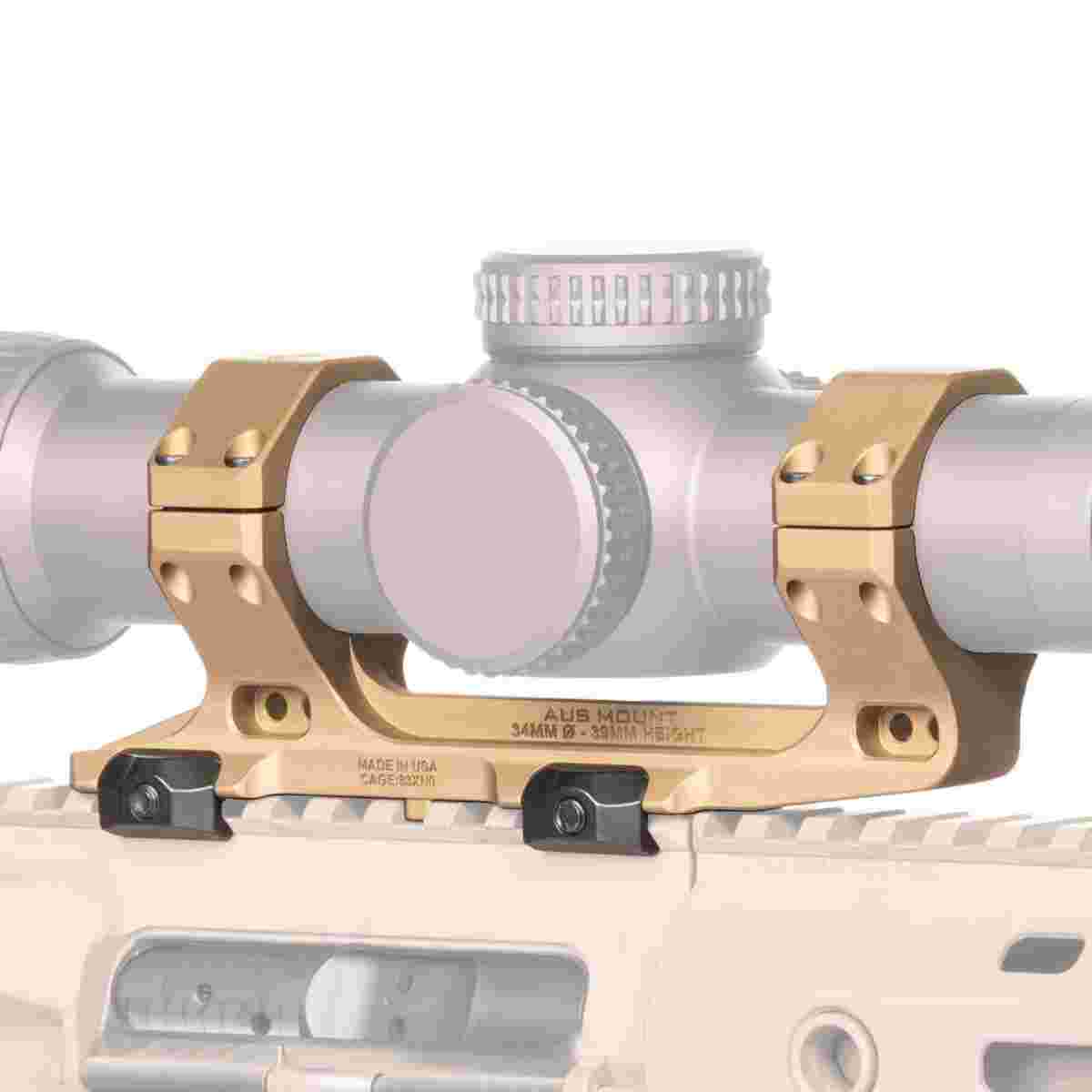

Reptilia AUS is a one-piece 34mm scope mount built for optics with a 34mm diameter tube. It mounts to a M1913 Picatinny rail using a spring-loaded nitrided steel clamp and a custom bolt system designed to sit low-profile and flush. The mount is machined from billet 7075-T6 aluminum and finished with MIL-STD Type III Class 2 hard anodize.
Key features
- Machined from billet 7075-T6 aluminum
- MIL-STD Type III Class 2 hard anodize finish
- Spring-loaded nitrided steel clamp mounts to M1913 Picatinny rail
- Mount height: 1.54 in bore height
- 34mm diameter bore for 34mm optics
Fit and clearance
The AUS is designed to clear flat-top Picatinny rails with up to 77mm objectives. It is compatible with Reptilia’s existing 30mm ROF line.
| Mount Type | Picatinny Rail |
|---|---|
| Mount Height | 1.54 in |
| Bore Diameter | 34mm |
| Weight | 158 g |
| Objective Clearance | Up to 77mm |
