Description

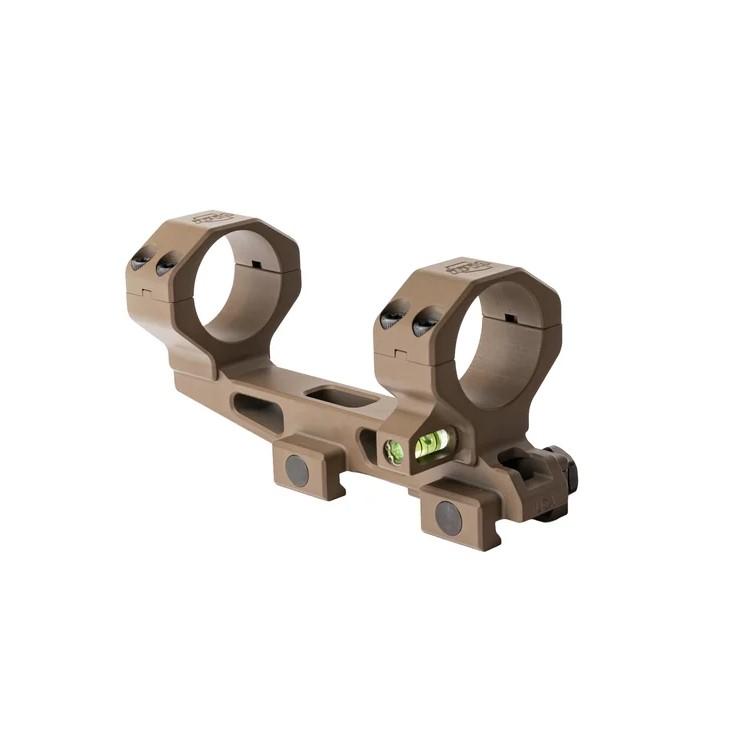

Rubicon Precision Manufacturing (RPM Mounts) Bravo 35mm cantilever mount uses a 1.50 in height to center of ring or optic and includes an integrated recoil lug. A co-linear bubble level is visible from the shooting position with the non-dominant eye for quick reference. The mount uses a 6061-T6 aluminum ring body and cap, with a 303 stainless steel cross bolt and nut.
- 1.50 in height to center of ring/optic
- Integrated recoil lug
- 6061-T6 aluminum ring body and cap
- 303 stainless steel cross bolt and nut
- Alignment lug to help keep cap/base aligned during cap screw installation
- Co-linear bubble level for cant reference
Torque values
- Cap screws: 18 in/lbs
- Cross bolt: 45 in/lbs
Weight
- 35mm: 6.0 oz
