Description

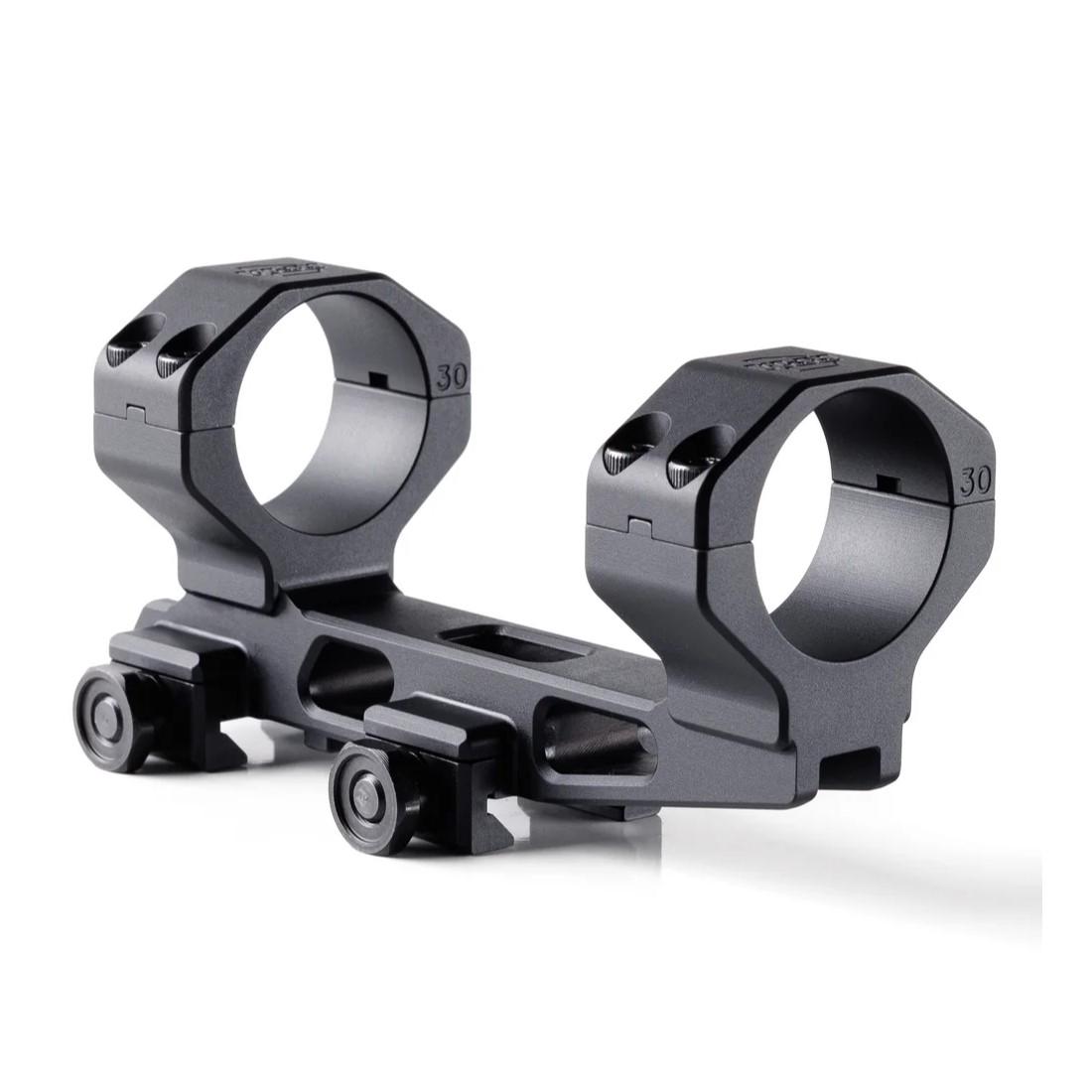

Rubicon Precision Manufacturing (RPM Mounts) RPM Delta 30mm cantilever mount is built to hold a 30mm optic at 1.50 in height to center of ring/optic. It uses an integrated recoil lug and includes alignment features to help keep the cap and base aligned during installation. The mount is made from 6061-T6 aluminum with a 303 stainless steel cross bolt.
- 1.50 in height to center of ring/optic
- Integrated recoil lug
- Alignment lug helps cap/base alignment during cap screw installation
- 6061-T6 aluminum ring body and cap
- 303 stainless steel cross bolt and nut (1/2 in)
- Recommended torque values: cap screws 18 in/lbs, cross bolt 45 in/lbs
| Mounting Size | 30mm |
|---|---|
| Height to Center | 1.50 in |
| Weight | 5.7 oz |
